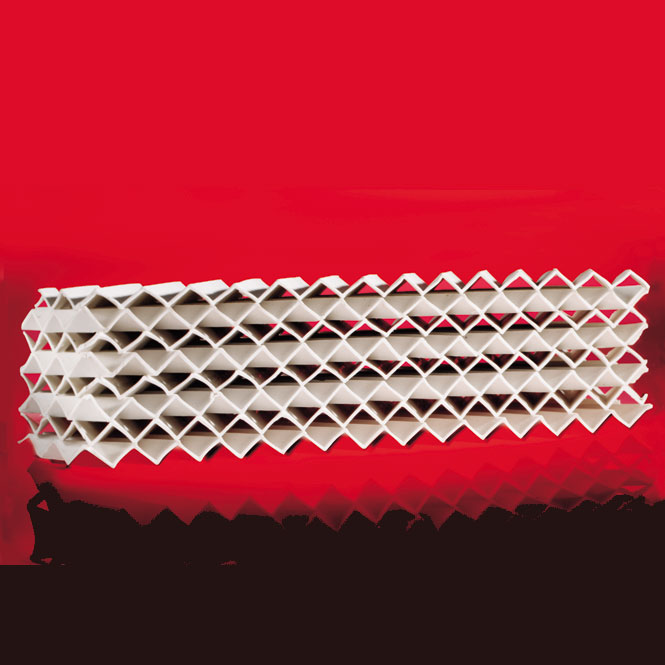

CORPAC II Ceramic Structured Media
Corrugated ceramic structured media
Lantec's CORPAC™ II is a corrugated ceramic structured media for RTOs. Its overall geometry is equivalent to Flexeramic-28®, making it a drop-in replacement which operates with the same performance characteristics. Individual CORPAC II blocks measure 300×200×150-mm.
Flexeramic® is a registered trademark of Knight Material Technologies LLC
For RTO heat recovery applications, see MLM or Segmented Honeycomb. For standard ceramic random packing, see Saddles.
Performance Data & Literature
Case Histories
Technical Specifications
Corpac Physical Properties — Imperial Units
| Property | Corpac Type 2 |
|---|---|
| Surface Area | 95 ft²/ft³ |
| Weight | 32 lb/ft³ |
| Crushing Strength | 22,970 lb/ft² |
| Void Fraction | 77% |
| Module Size | — |
| Water Absorption (ASTM C373) | < 1.0% |
| Acid Resistance (ASTM C279) | < 1.0% wt. loss |
Corpac Physical Properties — Metric Units
| Property | Corpac Type 2 |
|---|---|
| Surface Area | 310 m²/m³ |
| Weight | 520 kg/m³ |
| Crushing Strength | 1.1 MPa |
| Void Fraction | 77% |
| Module Size | 300 × 200 × 150 mm |
| Water Absorption (ASTM C373) | < 1.0% |
| Acid Resistance (ASTM C279) | < 1.0% wt. loss |
