Metal Q-PAC

METAL Q-PAC® OFFERS 20-25% BETTER GAS-LIQUID CONTACTING EFFICIENCY THAN IMTP-40, WITH LOWER PRESSURE DROP

Random packings such as modified saddles or rings with perforations and tabs force tower designers to sacrifice either mass-transfer efficiency or pressure drop. Until now, structured packings, with their controlled arrangement of surface area, drip points, and gas/liquid flow paths have provided the best packing tower performance. However, structured packings are expensive, difficult to install & maintain, and unsuitable for use at higher liquid loadings.

Lantec Products’ Metal Q-PAC® provides the best of both worlds: the efficiency and capacity of structured packings, with the economy and versatility of random packings.

Metal Q-PAC® provides maximum contacting efficiency and moderate pressure drop.

metal q-pac

(U.S. patent #5,498,376)

Physical Characteristics
Nominal Size (mm) 30
Packing Factor (1/ft) 24
Geometric Surface Area (ft2/ft3) 60
Weight (lb/ft3) 17
Material Thickness (mm) 0.30
Void Fraction (%) 97.2
Piece Count (pcs./ft3) 665

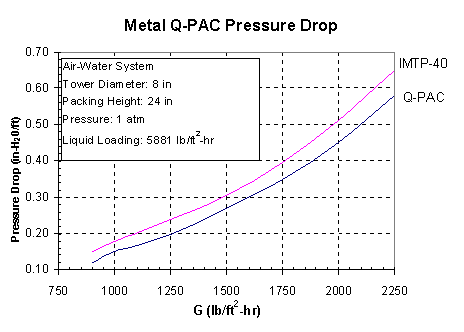

MetalQPAC_dp

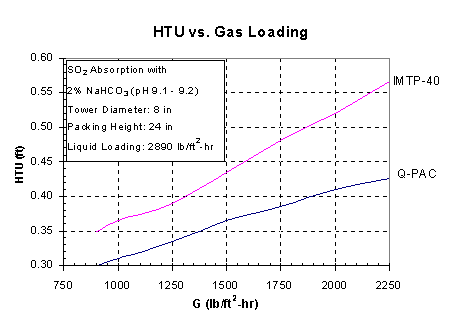

MetalQPAC_htu
